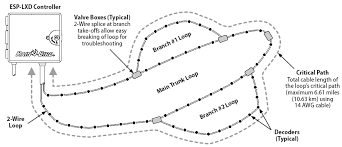

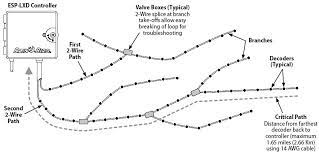

The longest piece of wire in a two wire system is Two-Wire Path Voltage and Current Measurements The greatest distance between two valves or. Traditionally wired and 2-wire are both types of irrigation systems. 2-Wire control allows you to phase or expand an existing irrigation system at your projects pace because you dont have to leave wire bundles or re-wire your system when making expansions or modifications. Activate up to 20 solenoids at up to 28 miles 45 km away from the controller. Simply connect in a new 2-Wire cable anywhere on the existing 2-Wire path to extend the system into new areas. Identify 2-Wire system layouts. However you can easily prevent this from happening or repair it after its happened by installing silicone-based capped connectors.

2-Wire control allows you to phase or expand an existing irrigation system at your projects pace because you dont have to leave wire bundles or re-wire your system when making expansions or modifications.

The Paige Irrigation Wiring Guide for Decoder Systems Background. Simply connect in a new 2-Wire cable anywhere on the existing 2-Wire path to extend the system into new areas. Learn how to troubleshoot basic decoder-based irrigation system problems. If you have an SLM48DM 2-wire system and the module becomes damaged or has blown the fuse of the SL1600 controller there is a high likelihood that the wire path has been damaged or is not properly waterproofed. Activate up to 20 solenoids at up to 28 miles 45 km away from the controller. The Station Status light on the ICore System Status dashboard will also show a red LED when there has been a decoder fault.

Traditional Vs 2 Wire Irrigation Systems Sportsfield Management

2-wire irrigation system troubleshooting. Most sports turf managers have the know-how to replace a broken head and in most cases can repair a ruptured pipe when needed. Seminar Troubleshooting an Irrigation System Its purpose is to serve as a reference manual for troubleshooting problems. The participant should have working knowledge of the landscape irrigation system including sprinkler valve and controller installation.

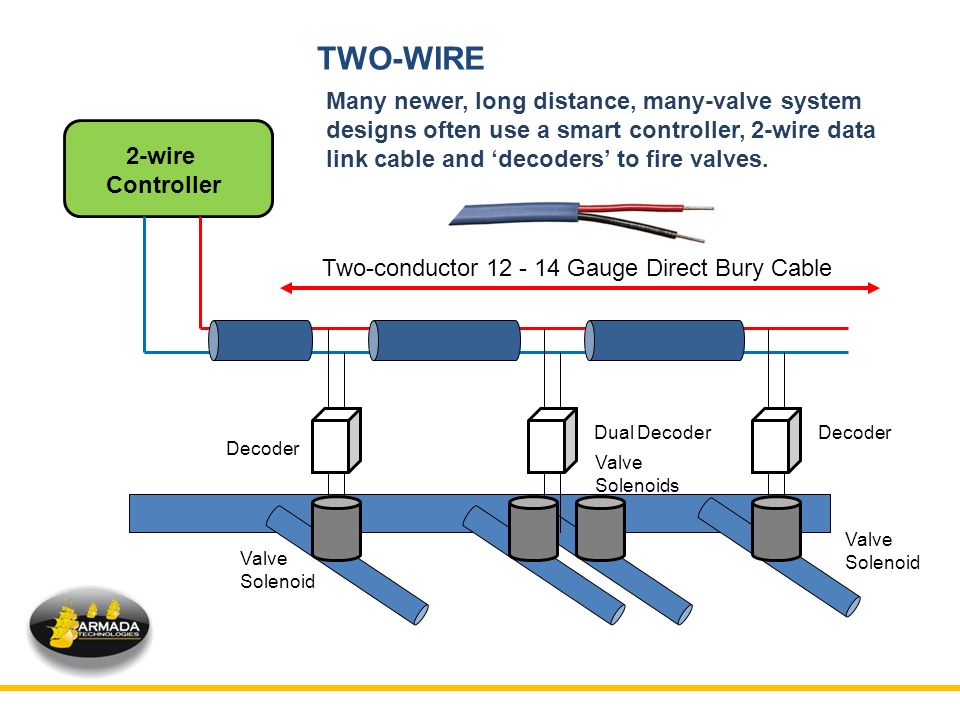

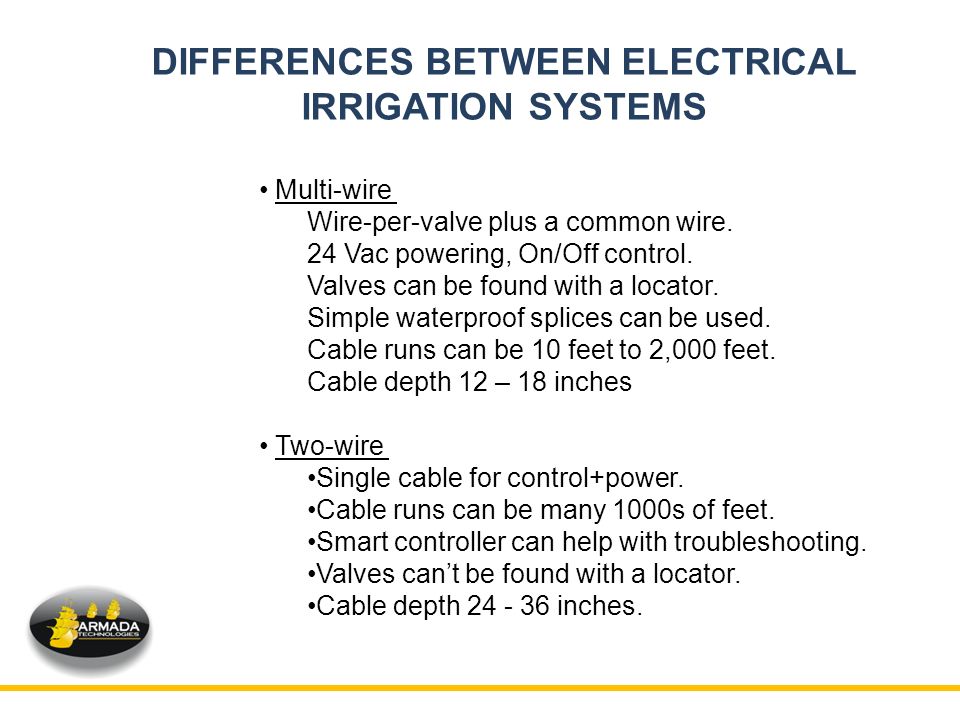

Basics of Water Efficient Irrigation Products. Example Armada Technologies slide show from an online training session with MPR Supply and their customers in March 2014. A traditional irrigation system involves a controller sending voltage down a wire path which activates a solenoid in turn opening a valve allowing water to flow to the sprinkler heads.

The first system was installed in Mr. Properly ground a decoder system. However when it comes to electrical troubleshooting of a system most will elect to call in an experienced irrigation contractor to diagnose and repair the issue.

However you can easily prevent this from happening or repair it after its happened by installing silicone-based capped connectors. Montecito uses am industry standard two-wire decoder system. TDC Series 2-Wire System.

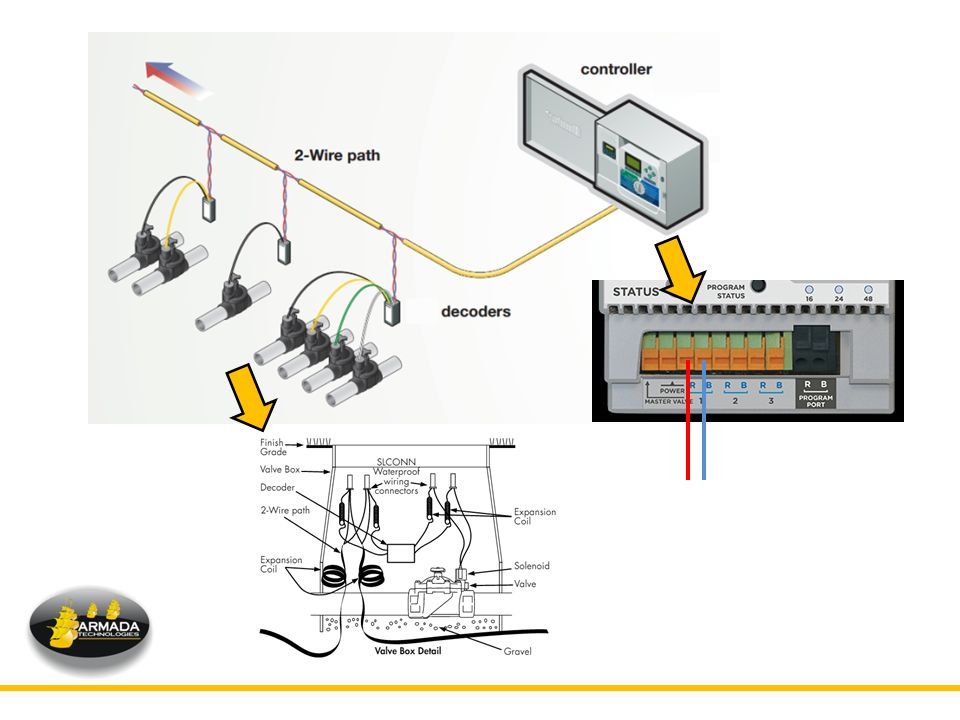

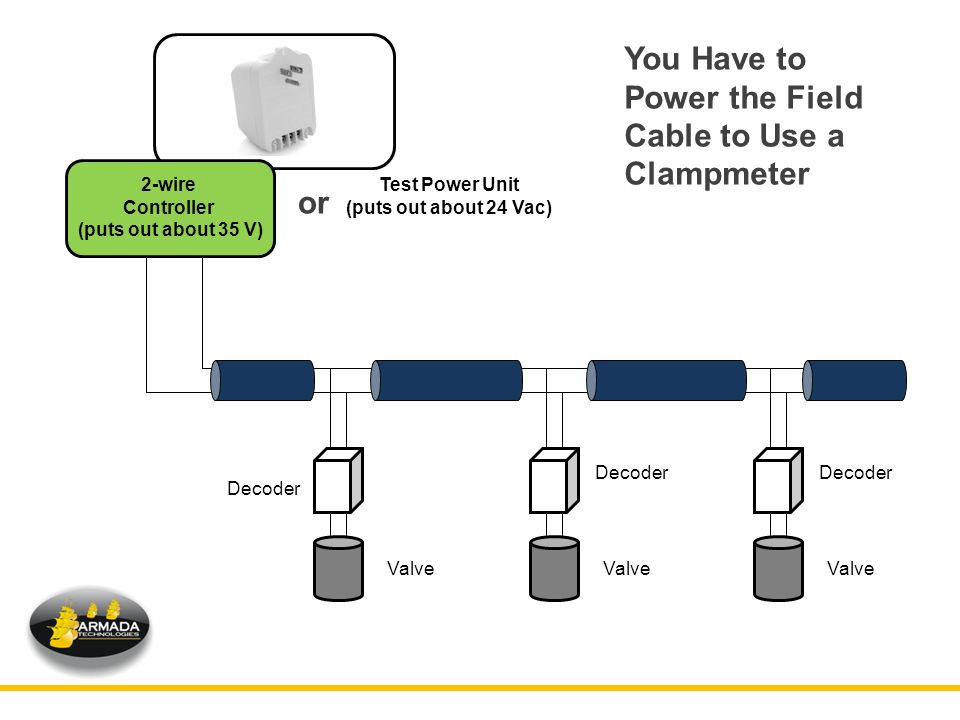

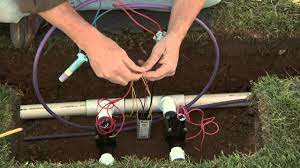

The 2-Wire path is the bus and each bus stop is a decoder. Oftentimes this will drive up the cost of the system. Then splice the IVM-SOL black wire to the two black wires of the 2-Wire PathUse only WC20 splice kits for all wiring connections to the 2-Wire Path.

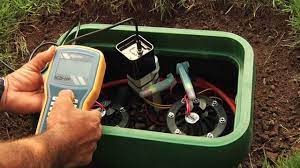

Troubleshooting the two-wire decoder system can be time consuming and requires strict schedule adherence by the landscaper. Multiply your approximate station count by 05mA and add 6mA for all sensor decoders installed. The participant should have working knowledge of the landscape irrigation system including sprinkler valve and controller installation.

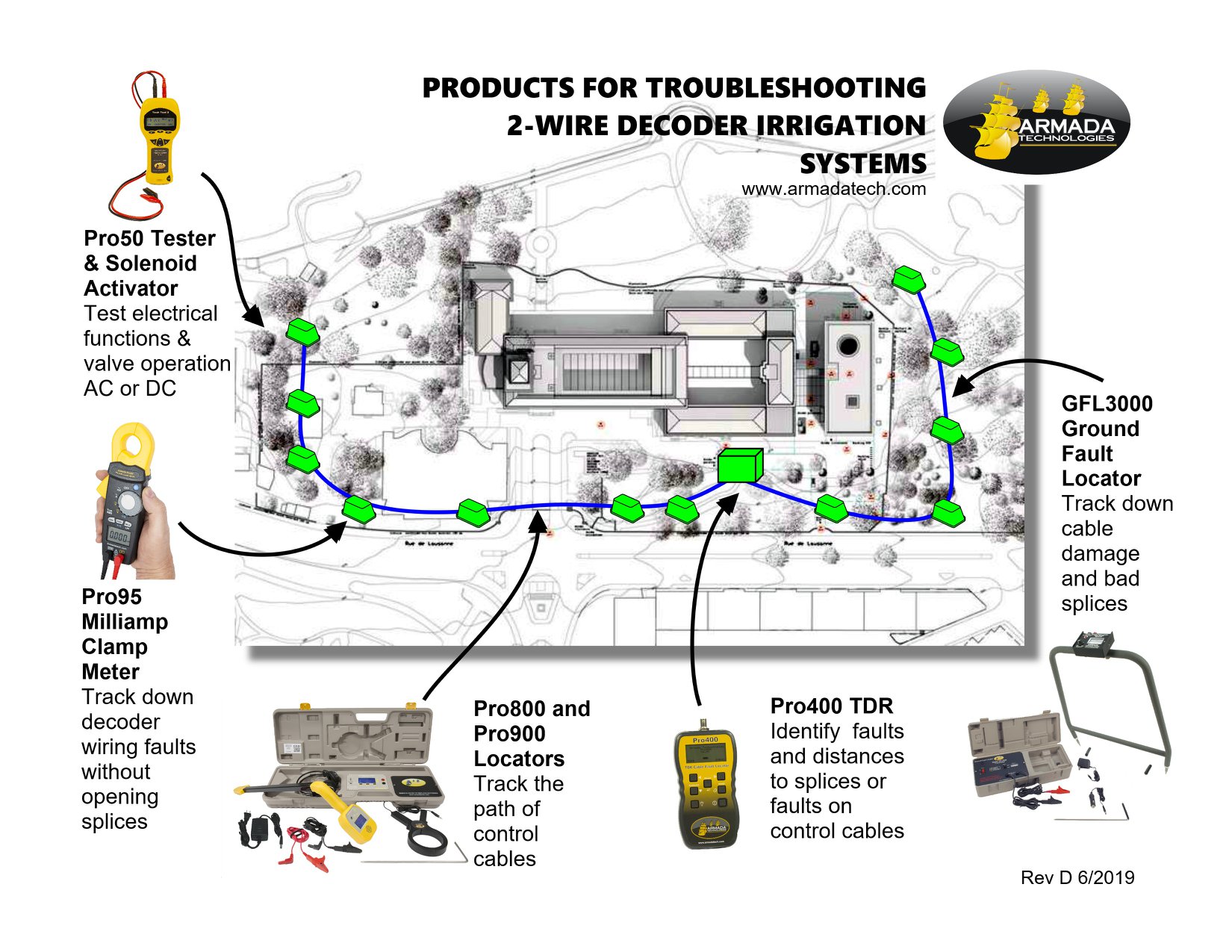

Online Training for 2-wire Irrigation System Troubleshooting. Troubleshoot a Short Open and an Earth Ground Voltage Fault and a Non-Responsive IVM-SOL in the ESP-LX-IVM 2-Wire path.
